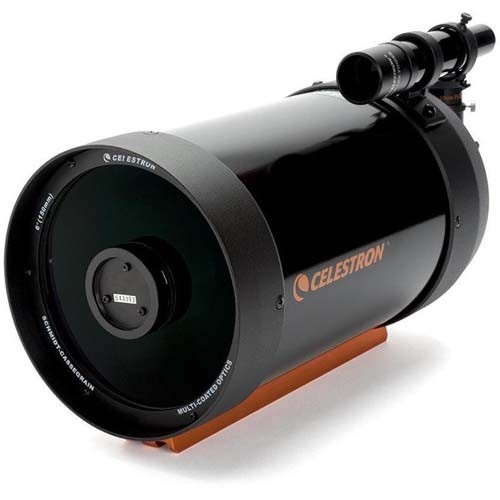

| Optical Design: | Schmidt-Cassegrain |
| Aperture: | 150mm (6") |
| Focal Length: | 1500mm (59") |
| Focal Ratio: | f/10 |
| Focal Length of Eyepiece 1: | 25mm (0.98") |
| Magnification of Eyepiece 1: | 60x |
| Finderscope: | 6x30 |
| Star Diagonal: | 1.25" Star Diagonal |
| Optical Tube: | Aluminum |
| Highest Useful Magnification: | 354x |
| Lowest Useful Magnification: | 21x |
| Limiting Stellar Magnitude: | 13.4 |
| Resolution (Rayleigh): | 0.93 arc seconds |
| Resolution (Dawes): | 0.77 arc seconds |
| Light Gathering Power (Compared to human eye): | 459x |
| Secondary Mirror Obstruction: | 56mm (2.2") |
| Secondary Mirror Obstruction by Diameter: | 37% |
| Secondary Mirror Obstruction by Area: | 14% |
| Optical Coatings: | StarBright XLT |
| Optical Tube Length: | 406mm (16") |
| Optical Tube Diameter: | 180mm (7.12") |
| Optical Tube Weight: | 10 lbs (4.54 kg) |
| Dovetail: | CG-5 Dovetail bar |
| Solar Warning | - Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result.
- Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
- Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
|
